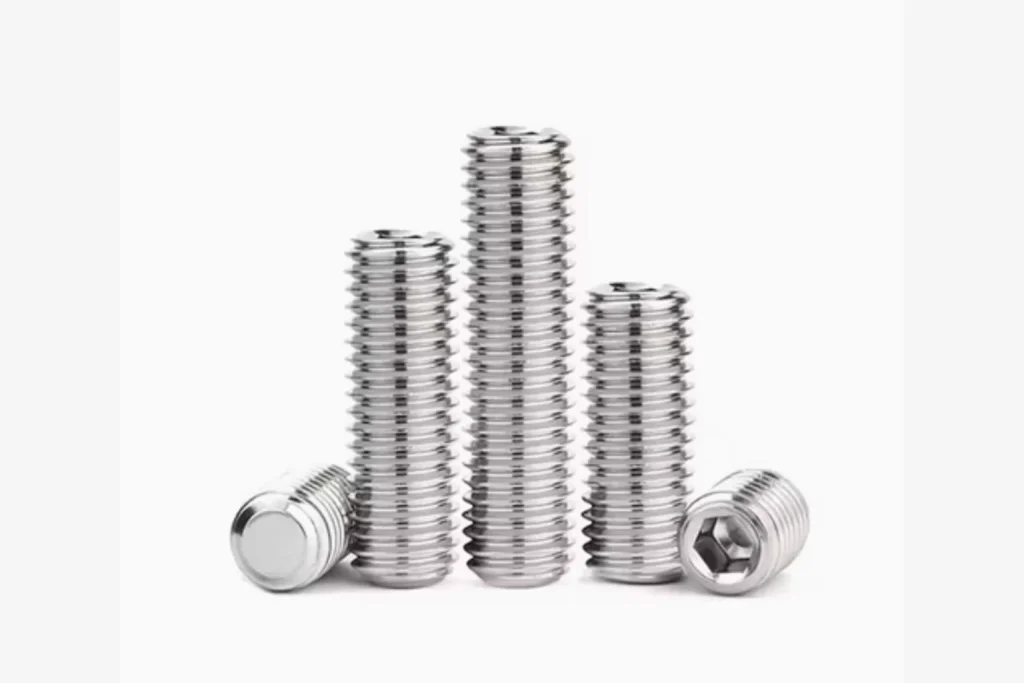

Hex Socket Set Screws
Hex socket set screws for shaft locking and positioning, with listed standards DIN 913/914/915/916 and GB/T 71/73/75/77.
Product TypeHex Socket Set Screw

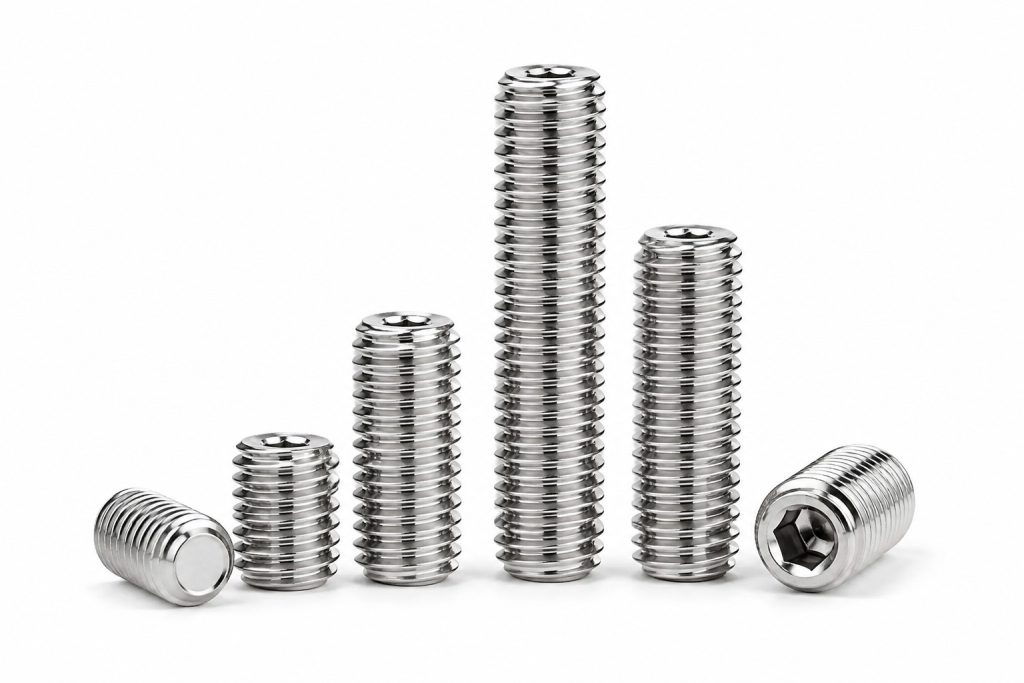

Size RangeM1.6-M20
Material304Stainless Steel / 316Stainless Steel / Carbon Steel
StandardDIN 913; DIN 914; DIN 915; DIN 916; GB/T 71; GB/T 73; GB/T 75; GB/T 77
01
Product Data
Technical Specifications
| Product Type | Hex Socket Set Screw |
|---|---|
| Size Range | M1.6-M20 |
| Material | 304Stainless Steel / 316Stainless Steel / Carbon Steel |
| Standard | DIN 913; DIN 914; DIN 915; DIN 916; GB/T 71; GB/T 73; GB/T 75; GB/T 77 |
| Strength Grade | 8.8; 12.9 |

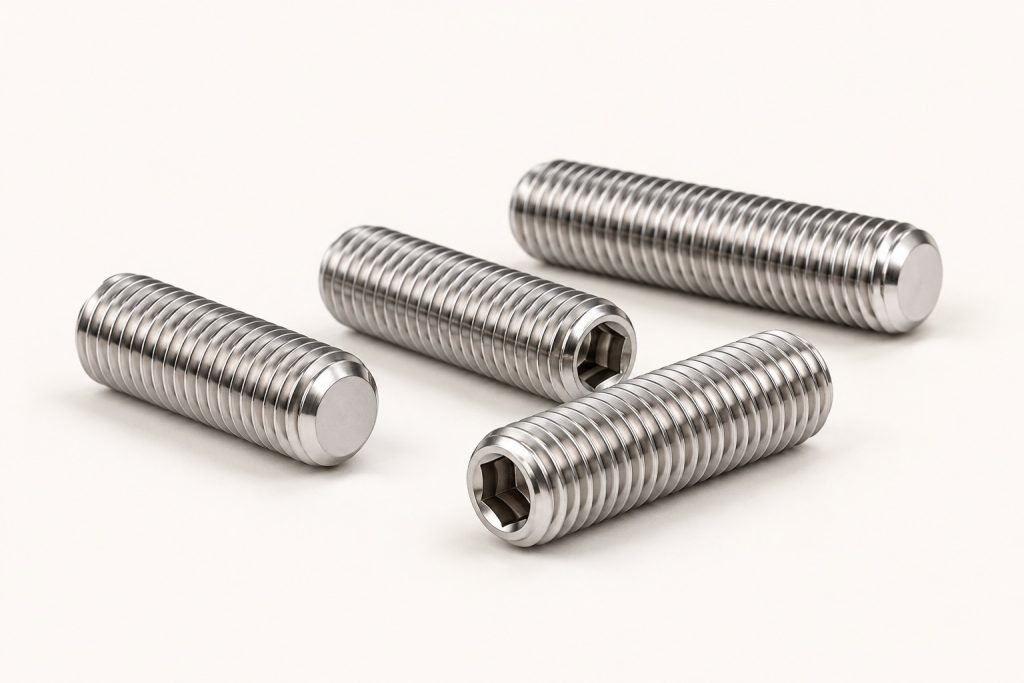

| Thread Type | Metric Thread |
| Packaging | Woven Bag; Cardboard Box |

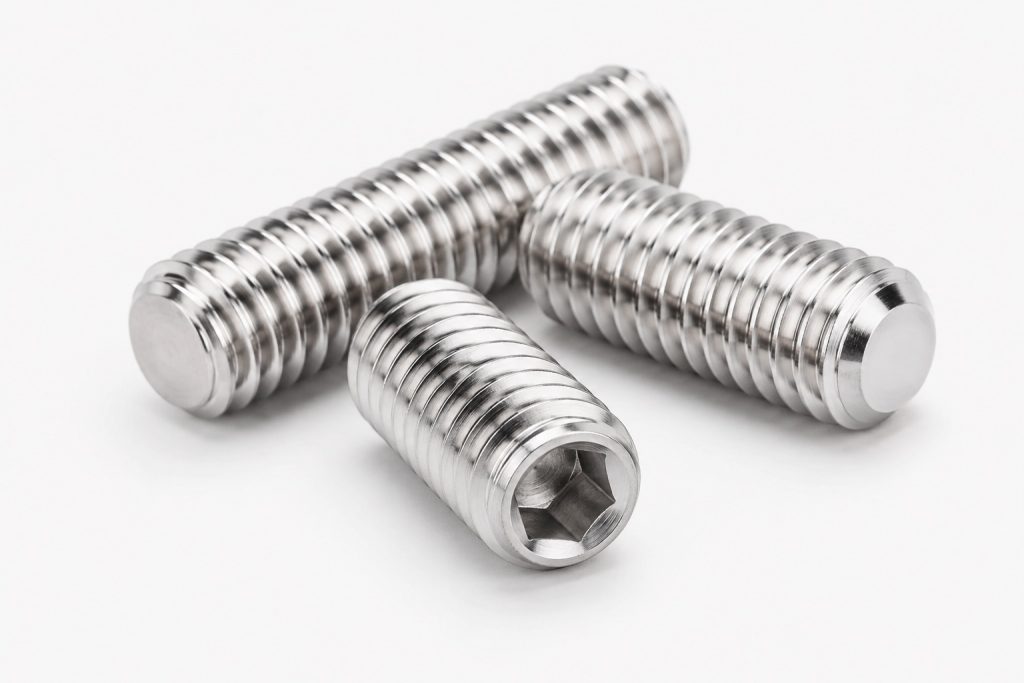

| Drive Type | Internal Hexagon (Allen) |
| Screw Type | Set Screw / Grub Screw / Headless Allen Screw |

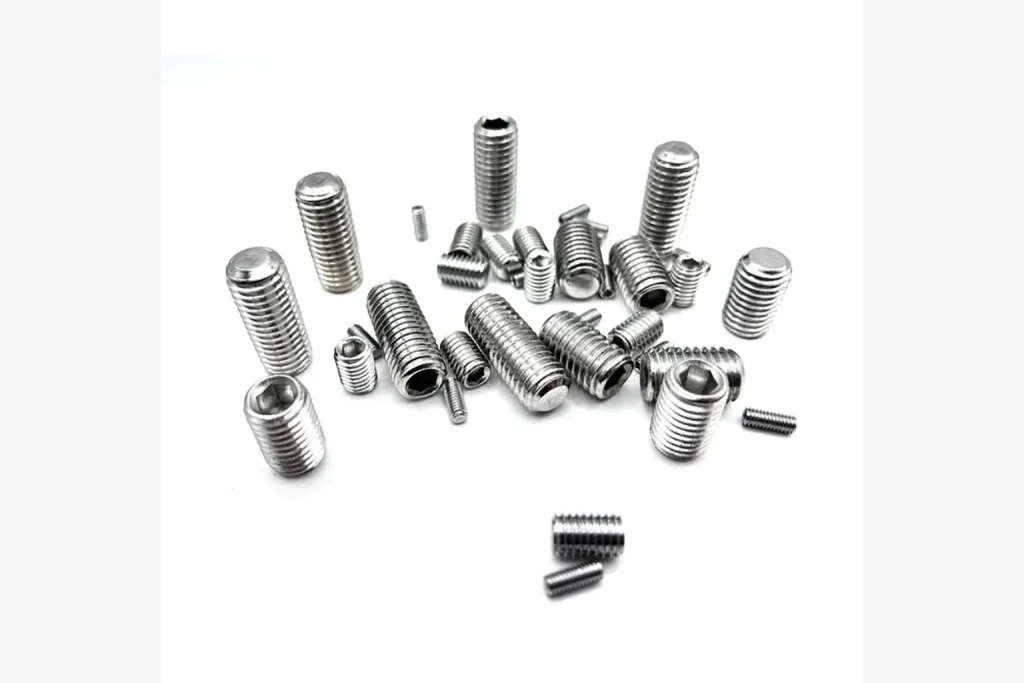

| End Types | Flat Point, Cone Point, Dog Point, Cup Point |
| Application | Shaft Locking, Gear Positioning, Machinery & Automotive Assembly |
Reference Outline
Confirm the required drawing and dimensional tolerances in your inquiry.
Packaging Options

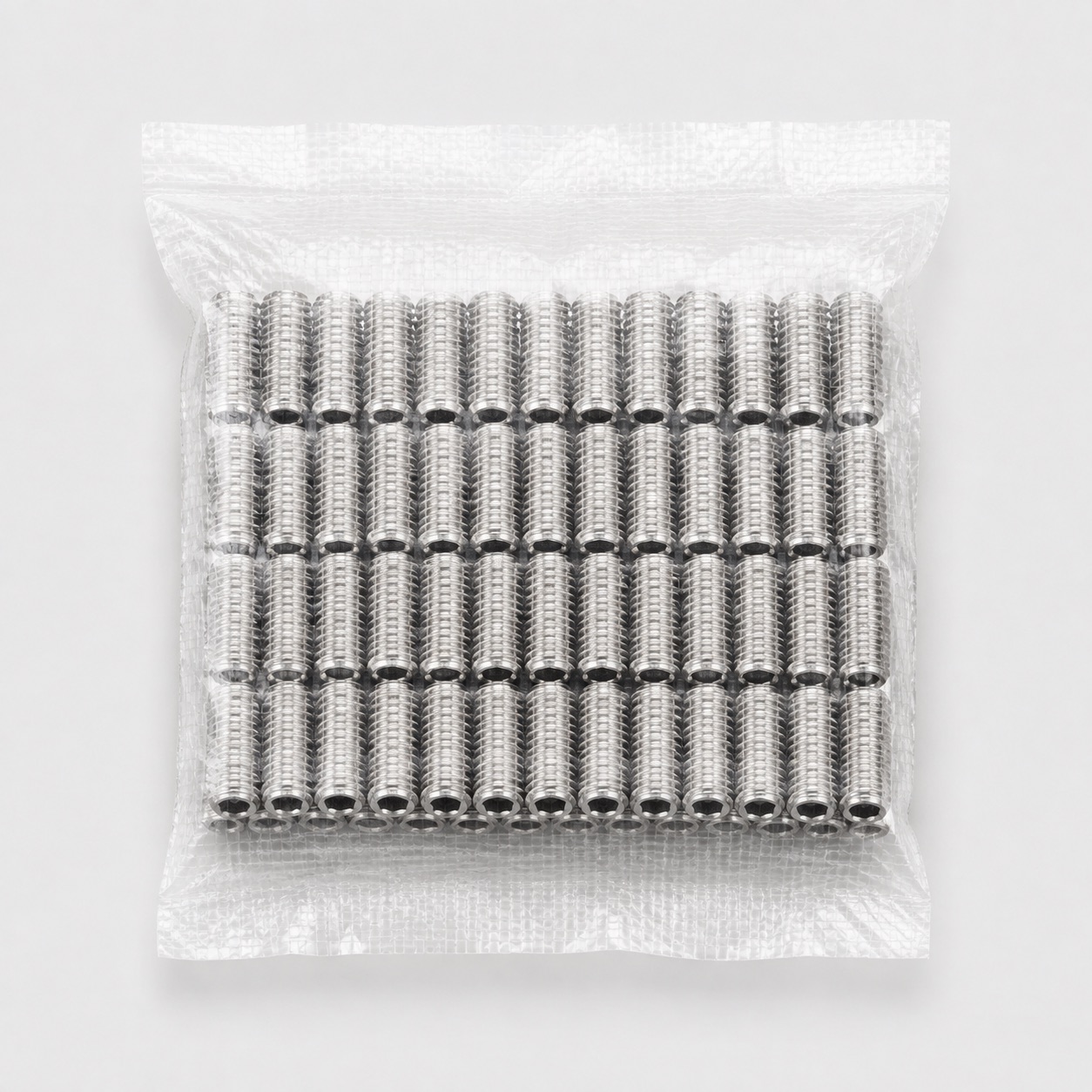

Woven Bag

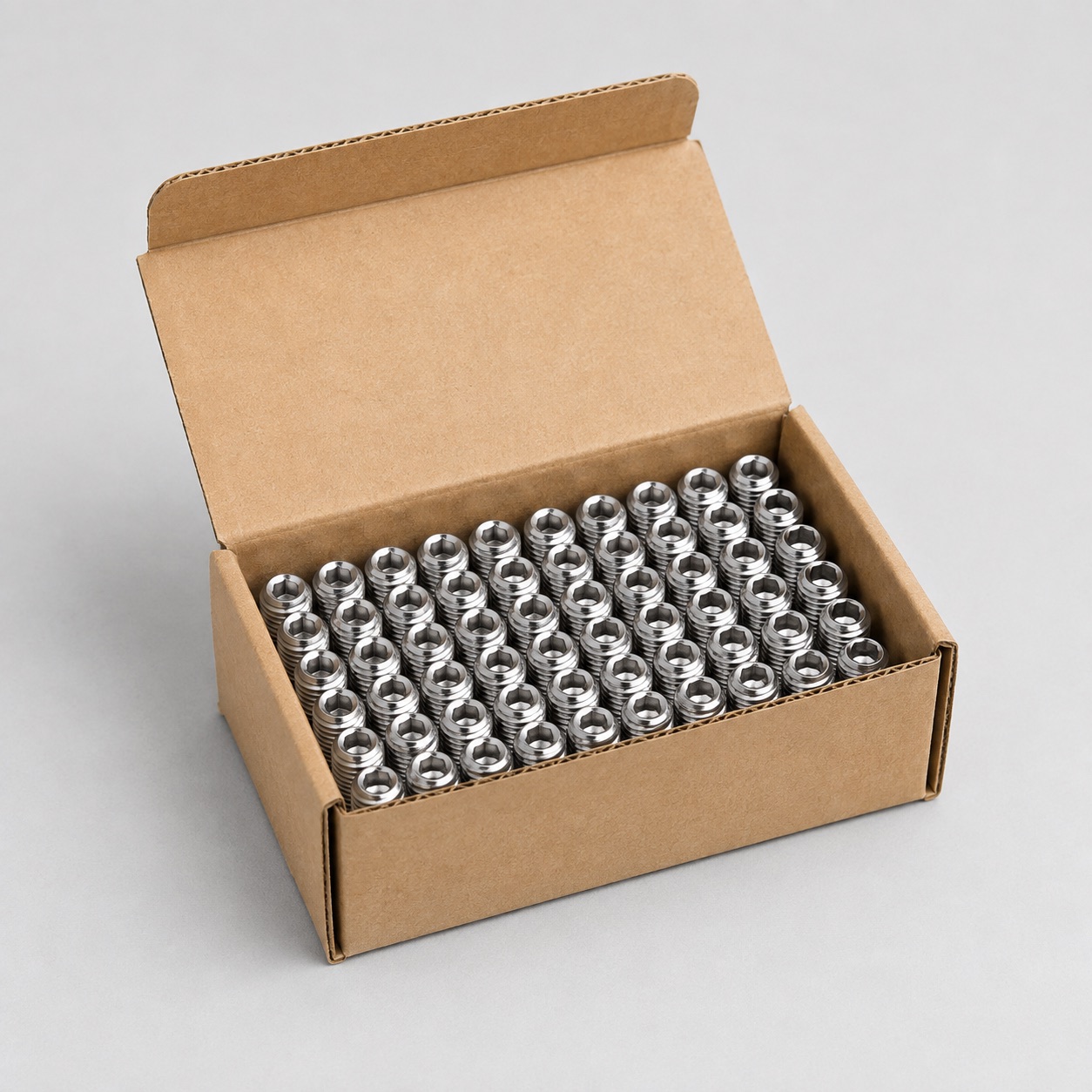

Inner Carton

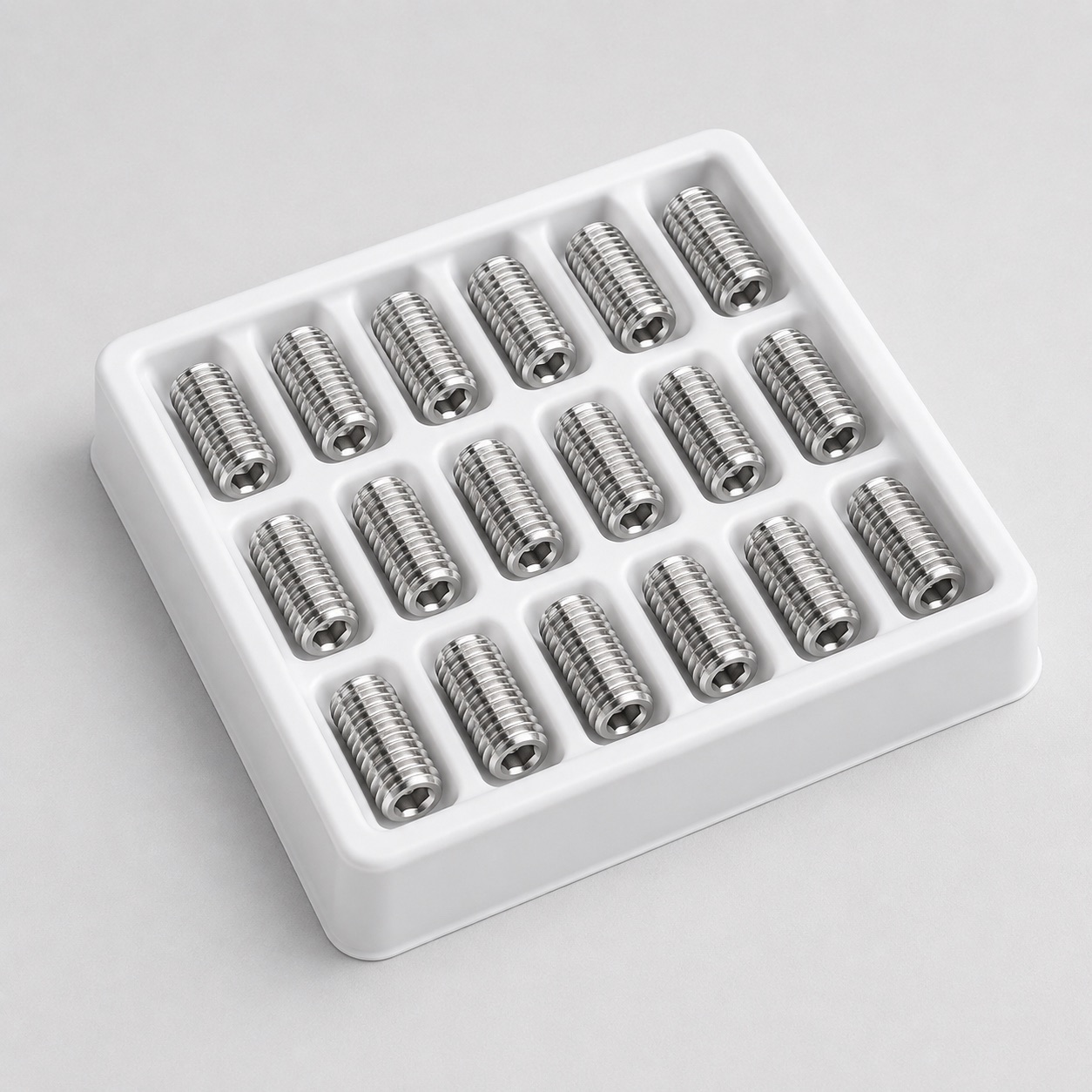

Custom Tray

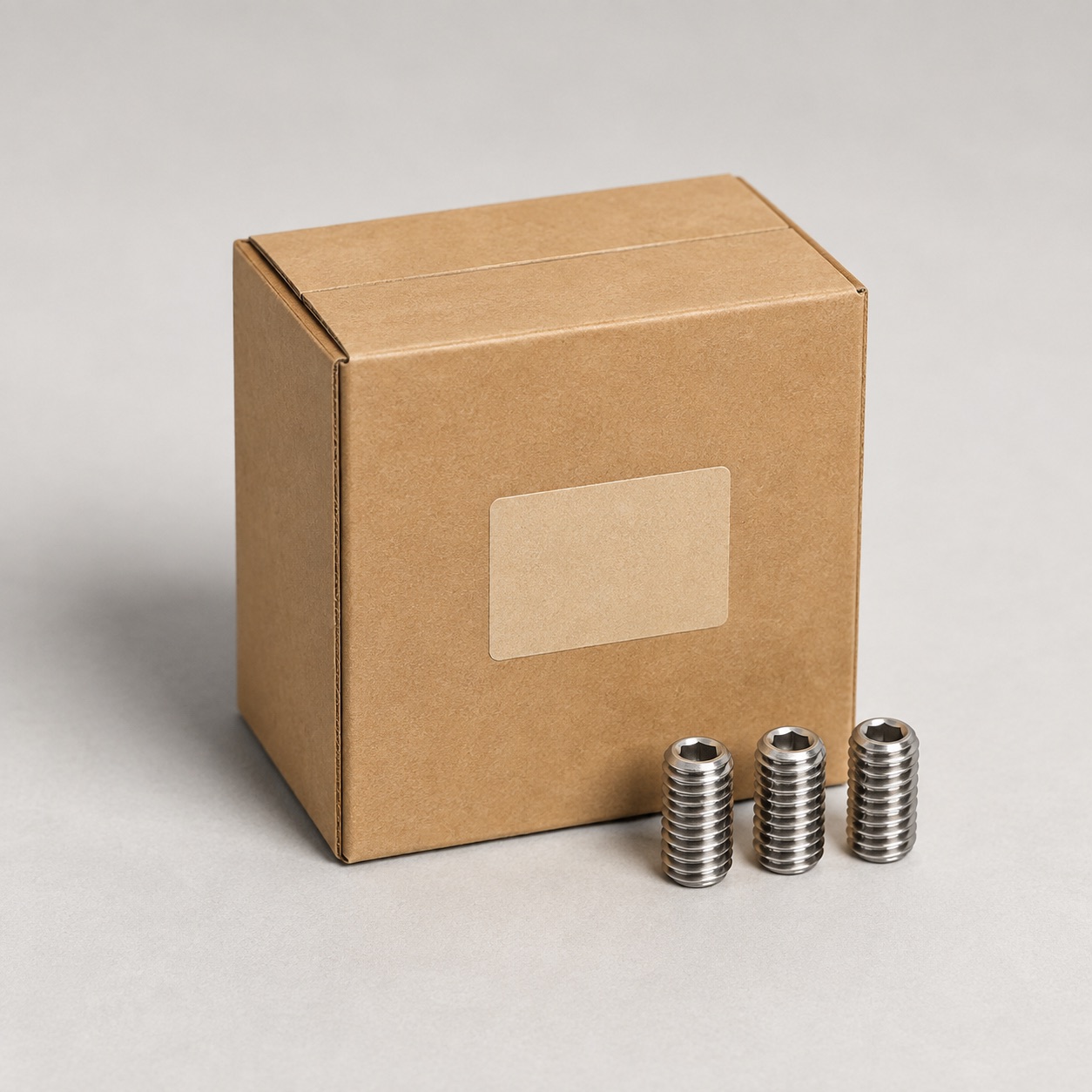

Outer Carton & Marking02
Selection Support
How This Product Is Used
Typical application illustration

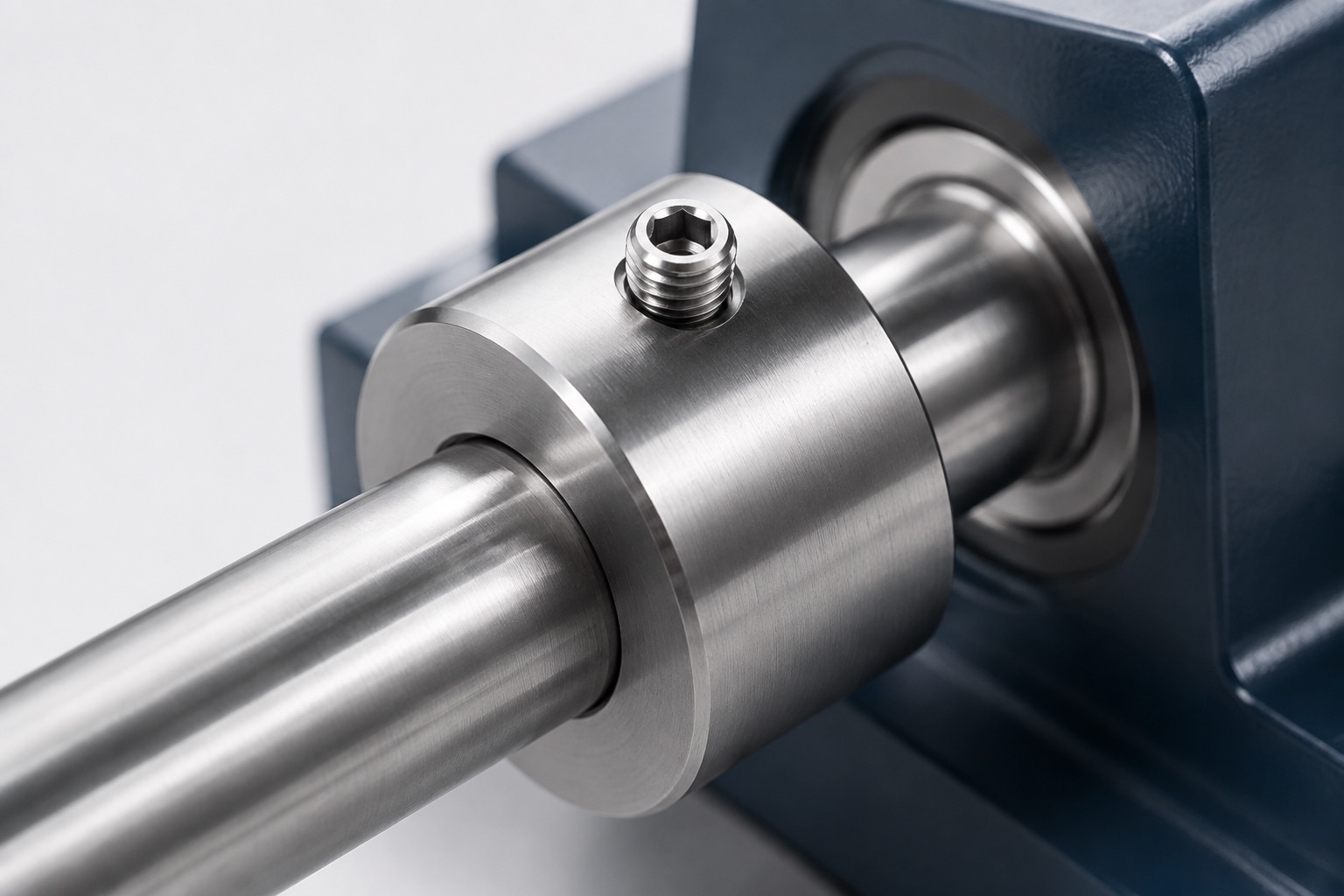

Shaft Locking
Confirm point style and holding requirement.
Typical application illustration

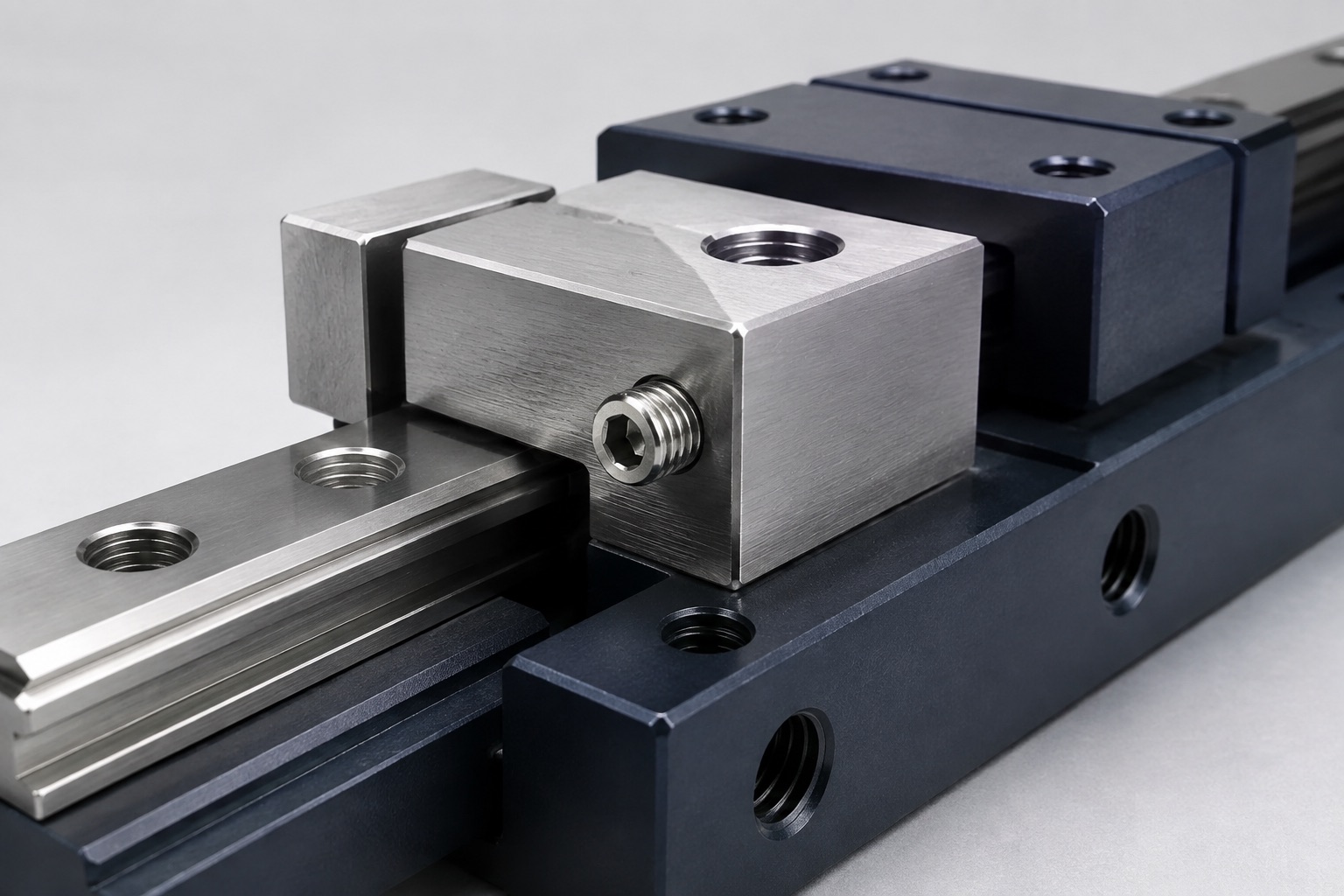

Machinery Assembly
Match thread, material and standard to the assembly.
Typical application illustration

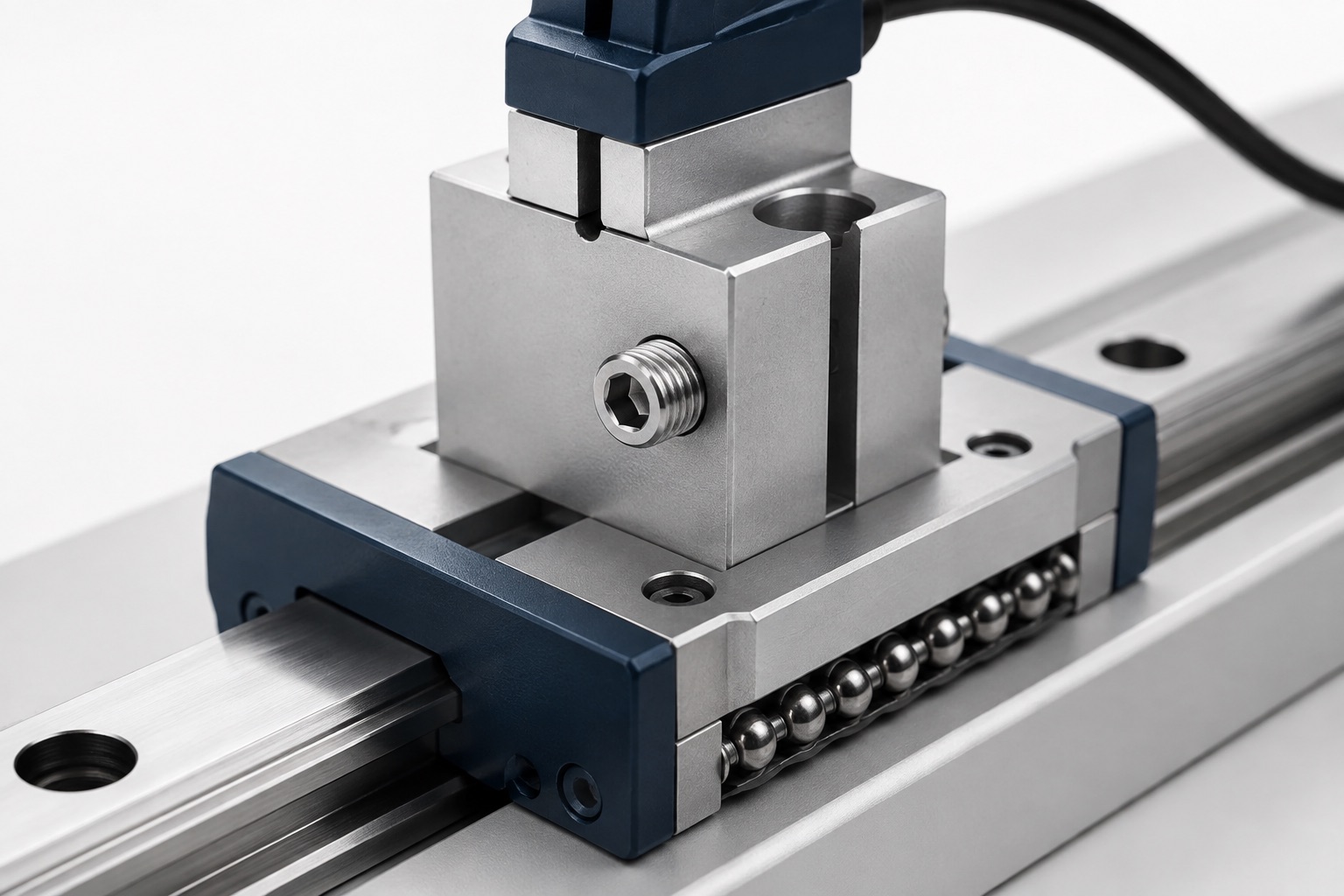

Automation Equipment
Provide drawing details for compatibility review.
03
Before Inquiry
Frequently Asked Questions
What information should I send for a quotation?
Send the required size, material, standard, quantity and any drawing.
Can you review a sample or custom requirement?
Yes. Use the sample route and include the intended application.
How is packaging confirmed?
Confirm the required packing method and shipping mark in the inquiry.
✉Start an Inquiry
Ready to Discuss Your Requirement?
Send product details and quantity for the next response.
